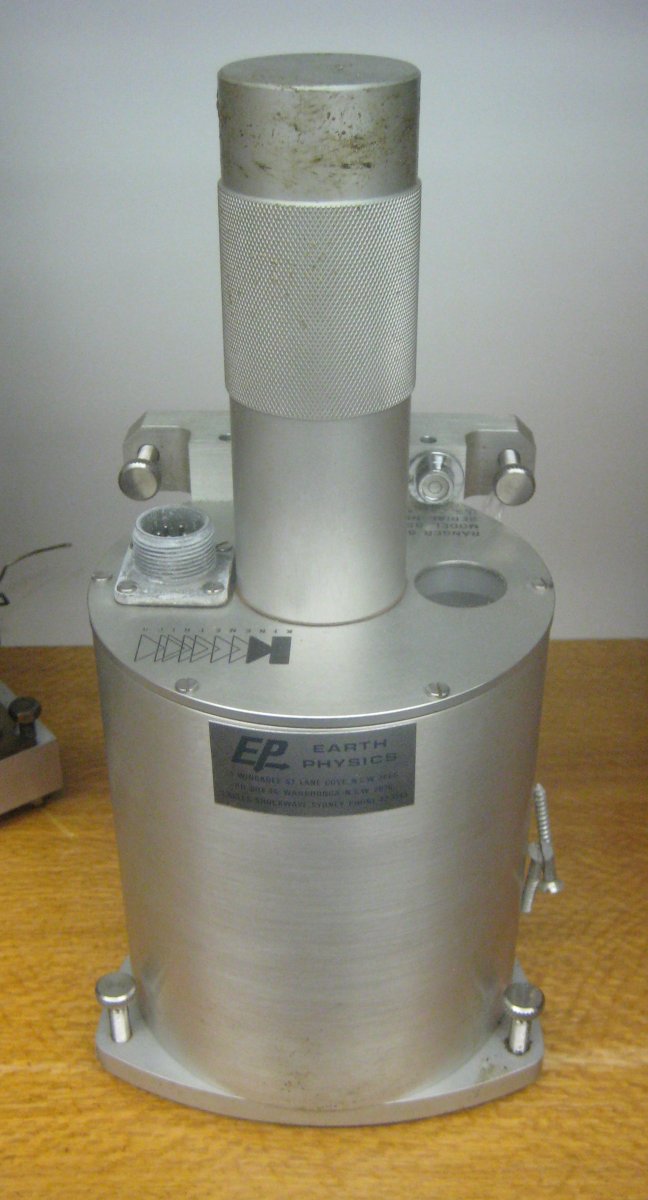

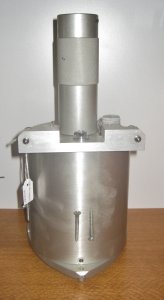

According to the manufacturer, the Kinemetrics SS-1 Ranger Seismometer 'is the terrestrial version of the "lunar seismometer" designed for the Ranger lunar program. The current SS-1 retains the original features of small size, high sensitivity, adjustable natural period and rugged watertight construction. An important feature of the Ranger is that it can be adapted as either a vertical or horizontal seismometer by simple adjustment of the mass centering spring. The SS-1 is frequently used as a sensor for ambient vibration measurements of buildings, bridges, foundations and offshore platforms.'
The SS-1 Ranger Seismometer is a "moving coil" style (velocity) transducer. The coil is stationary, however, while the strong permanent magnet serves as the seismic inertial mass. The mass is supported and constrained by annular springs at the top and bottom of the moving magnet.
The basic natural period of 0.35 seconds is extended to 1 second or more by means of small rod magnets which surround the periphery of the mass, interacting with its magnetic field. The separate calibration coil in the base provides a simple and accurate means of field-calibrating the SS-1, using only a known-voltage and a fixed precision resistor. In a vertical position, the unit is 5.5 inches in diameter and 12 inches high, including the inertial mass centering extension. For transportation, a protective clamp for the moving mass is incorporated into the base of the seismometer. Available as options for the SS-1 are adjustable leveling feet and bulls-eye levels.
